SN

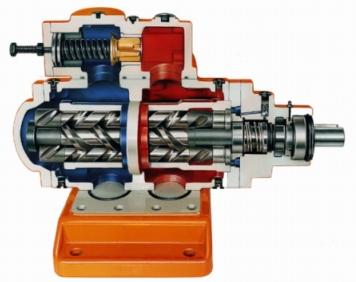

Three-Screw pump for general applications up to 100 bar
Pumped liquid
Chemically neutral, lubricating, e.g., fuel oils, lube oils, hydraulic oils, cutting oils, coolant oils, cooling oils, waxes, tar oils, polyols, isocyanates, paints, lacquers
Main fields of application
Firing, hydraulics, mechanical engineering, general industrial technologies, chemical and petrochemical industries, marine and offshore engineering
Performance data Series SN
| Capacity | Q | up to | 5300 | l/min |
| Inlet pressure | ps | up to | 7 | bar |
| Discharge pressure | pd | up to | 100 | bar |
| Differential pressure | pdiff | up to | 100 | bar |
| Viscosity | v | up to | 3..5000 | mm²/s |
| Fluid temperature | t | up to | 250 | °C |
| Speed | n | up to | 3600 | 1/min |
Construction features
- Base plate design (pump and motor mounted on a base plate)
- Bulkhead mounting
- Pedestal mounting
- Dry installation
- Submerged design
- In-tank installation
- Motor or gear mounted pump
- Vertical installation
- Horizontal installation
- Reversible hydraulic
- Self – priming
- With shaft sealing
