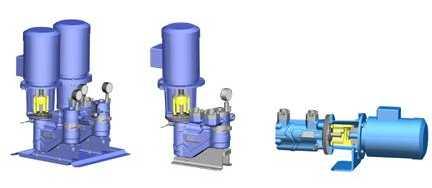

AFM
Three-screw screw pump with magnetic coupling for applications up to 40 bar.
Pumped liquid
For handling lubricating liquids with no abrasive substances, no chemical attack of pump materials, in particular heating oils, lube oils, hydraulic oils or other lubricating liquids
Main fields of application
Oil firing applic.: transfer, booster, burner operation pumps, Marine: feeder, circulation pumps for fuels / lubricants, Tank farm engineering: feeder, tank drainage pumps, Industry: lubric. pumps for gear boxes, motors, hydraulic installations.
Performance data Series Magdrive AFM
| Capacity | Q | up to | 112 | l/min |
| Inlet pressure | ps | up to | *)7 /**)25 | bar |
| Discharge pressure | pd | up to | 40 | bar |
| Differential pressure | pdiff | up to | 40 | bar |
| Viscosity | v | up to | 750/3000 | mm²/s |
| Fluid temperature | t | up to | 150 | °C |
| Speed | n | up to | 3600 | 1/min |
*) AFM-T / F vis:750 mm²/s **)AFM vis:3000 mm²/s
Construction features
- Pedestal mounting
- Dry installation
- In-tank installation
- Vertical installation
- Self – priming
- With magnetic drive
- Horizontal installation and Bulkhead mounting (AFI, AFT and AFM only)
